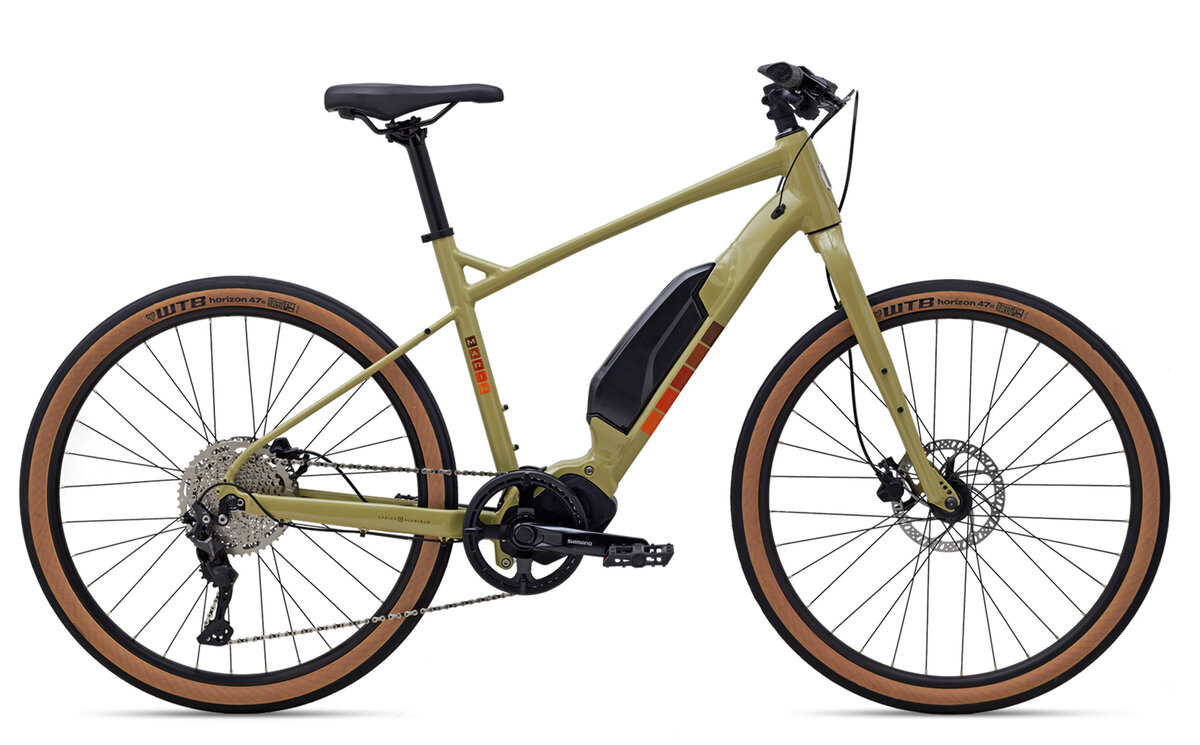

Marin Sausalito E1

Marin Sausalito E1
  • Color: Gloss Tan/Brown/Orange
$2,699.99
$3,149.99
Color: Gloss Tan/Brown/Orange
Size: Large
Please select options Unavailable

Details

The Sausalito lives up to its namesake city as the perfect bike to tackle steep hills in the middle of your commutes or fun bike path explorations and get you and your stuff home in style. Shimano's STEPS electric drive systems are light, efficient, and powerful, giving you the boost you need to quickly and efficiently navigate a variety of road conditions and grades for many miles. 650b wheels and wider tires smooth out the streets and paths, and the whole platform is ready for customization with clever details for the attachment of all types of commuter accessories.

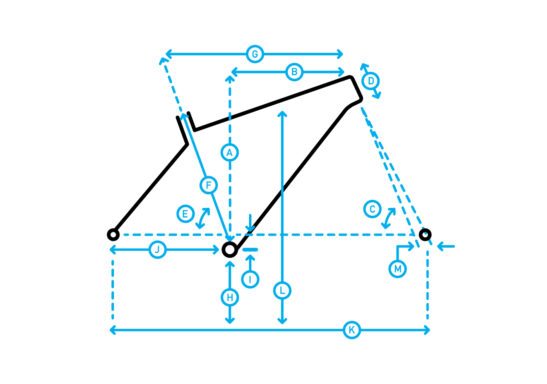

Geometry

Sizes:
SmallMediumLargeX-Large
A- STACK 590 617.7 645.8 673.9
B- REACH 380 405 425 440
C- HEADTUBE ANGLE 69.5° 69.5° 69.5° 69.5°
D- HEADTUBE LENGTH 120 150 180 210
E- SEATTUBE ANGLE 74° 74° 74° 74°
F- SEATTUBE LENGTH 430 480 520 558
G- TOPTUBE EFFECTIVE 549 582 610.2 633.2
H- BB HEIGHT 296.5 296.5 296.5 296.5
I- BB DROP 45 45 45 45
J- CHAINSTAY 455 455 455 455
K- WHEELBASE 1083.4 1118.9 1149.4 1174.9
L- STANDOVER HEIGHT 679.38 717.79 747.88 784.9
M- FORK OFFSET 44 44 44 44
SEATPOST DIAMETER 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH 720 740 740 740
STEM LENGTH 45 45 45 45
CRANK LENGTH 170 170 175 175
Size Rider height range
Small 5'2" to 5'6"
Medium 5'6" to 5'10"
Large 5'10" to 6'2"
X-Large 6'2" to 6'4"

Specs

Frame Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts
Fork Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Rims Marin Aluminum Double Wall, Disc Specific
Hubs Forged Alloy, Disc Specific, 32H
Spokes 14g Black Stainless Steel
Tires WTB Horizon, 650Bx47, Wire Bead
Crankset Shimano, Aluminum w/ 44T Steel Chairing
Shifters Shimano Deore 10-Speed
Rear Derailleur Shimano Deore 10-Speed
Cassette/Freewheel Shimano Deore 10-Speed 11-46T
Chain KMC X10E
Brakes Tektro HD-M275 Hydraulic, 180mm Rotor
Brake Levers Tektro Hydraulic
Handlebars Marin MiniRiser Alloy
Tape/Grips Marin County
Stem Marin Alloy
Headset FSA No. 57E
Seatpost Marin Alloy, 30.9mm
Saddle Marin City Plush
Pedals Nylon Platform
Accessories & Extras Rear Mount Alloy
Motor Shimano Steps E5000 Drive Unit, 250W, 40Nm, Class 1
Battery Shimano BT6010, 418Wh

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Tan/Brown/Orange / Large 843346115065 735017003 SAU184633251
